• DMT Standard

    • TPC

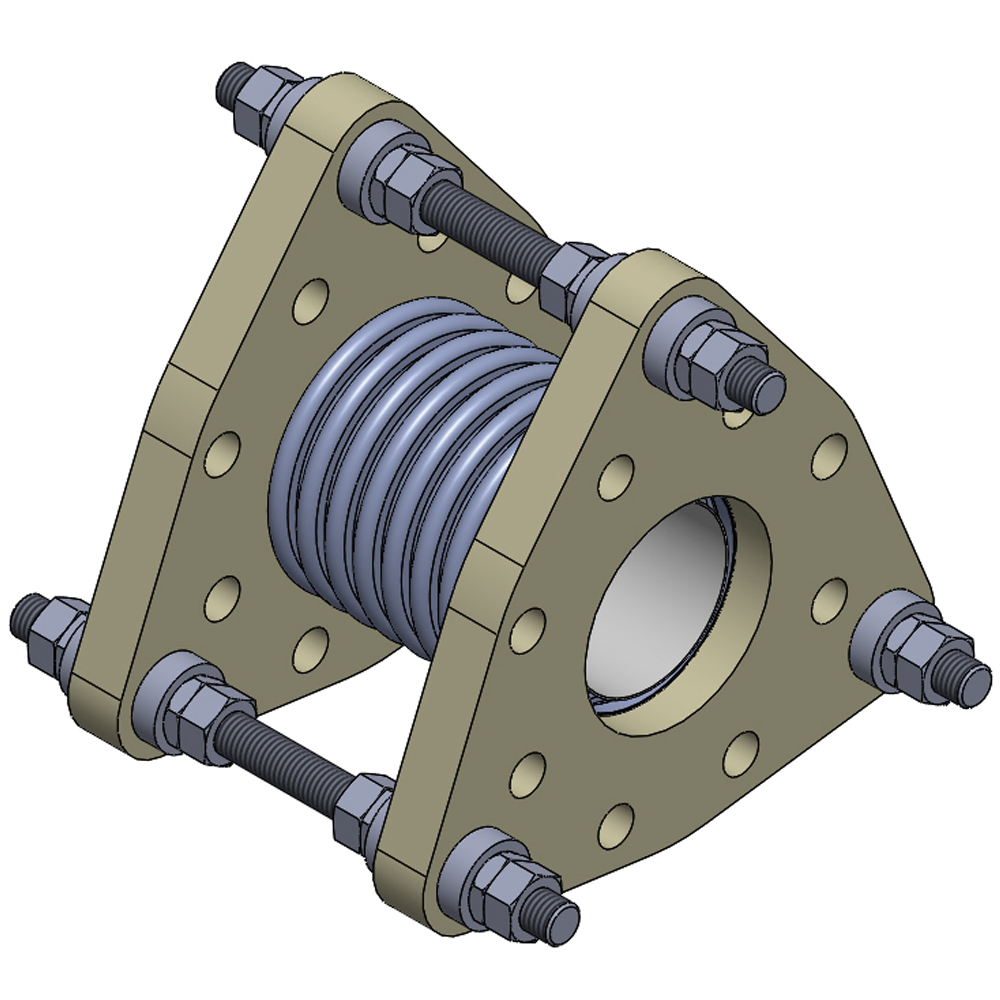

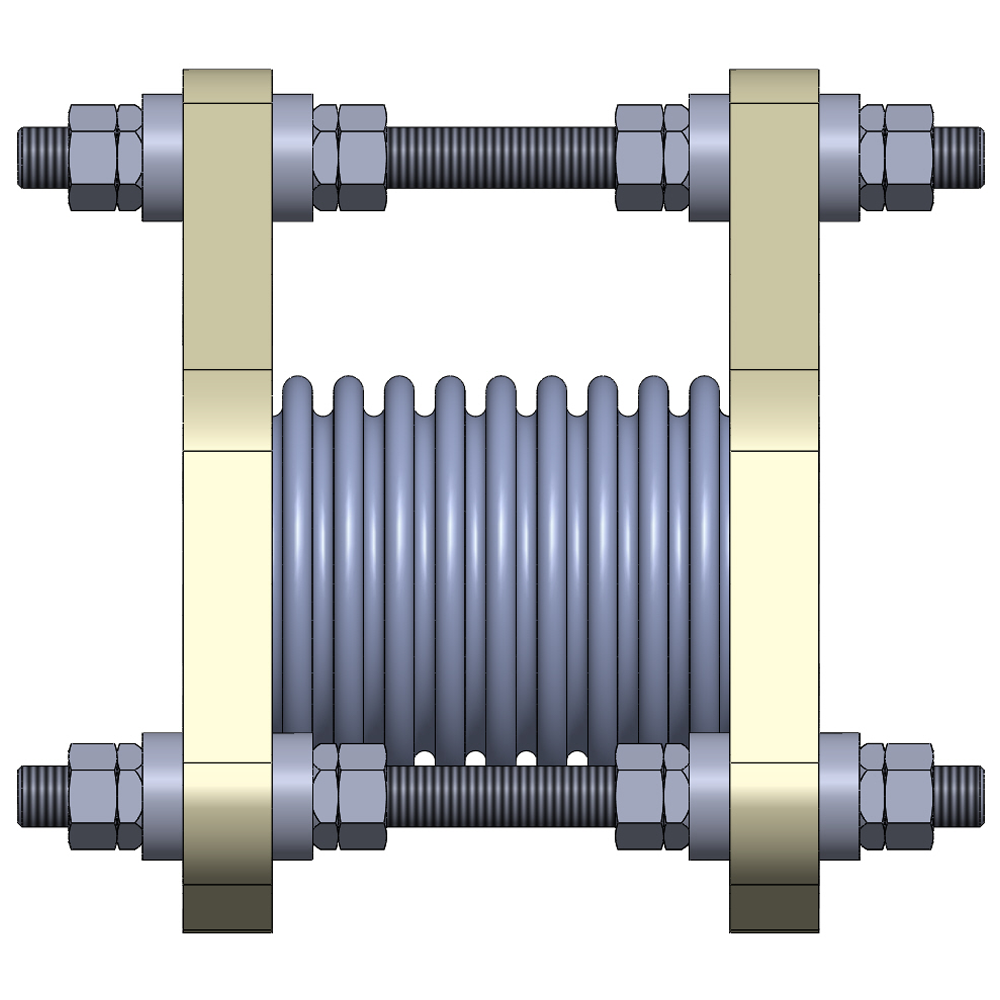

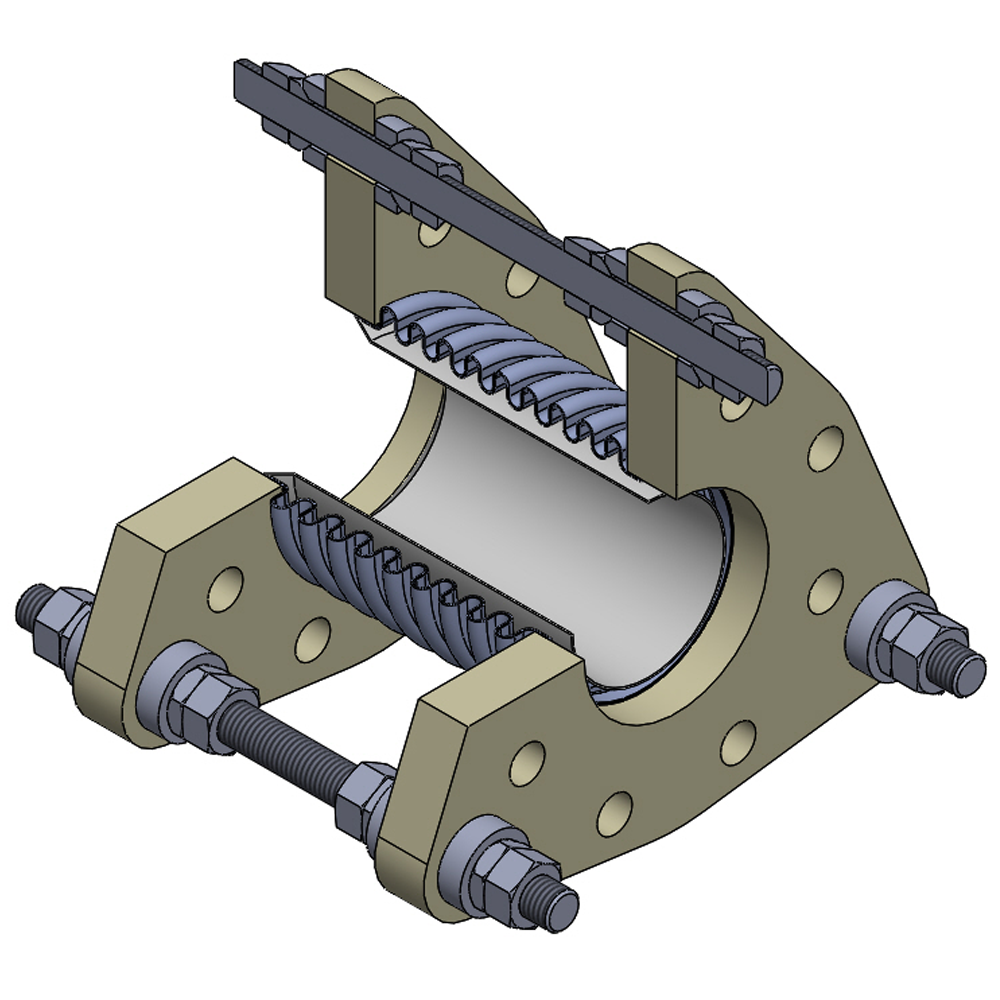

    • Integrated structure of holder for flange and tie rod
      Tie eod installation that withstands thrust caused by internal pressure
      Absorbs vibrations of the pump in tight spaces
      Length and quantity of convolutions can be adjusted according to site installation space
      No need for a separate fixing point by installing a tie rod
      It can be produced by changing the material of the bellows according to the fluid
      Bellows Material : STS 3**, Titanium, High Alloy, Duplex, Hastelloy, ...

    • Application Pump connection
      Pressure F.V. / 20 bar
      Tag
    • Pump Connector
      • Data 카탈로그 다운로드

제품설명

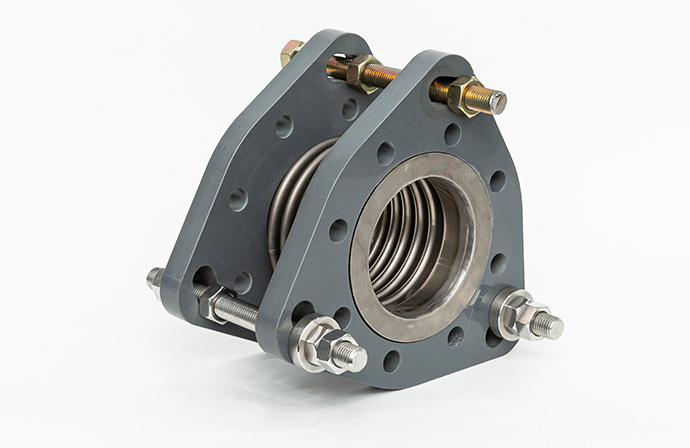

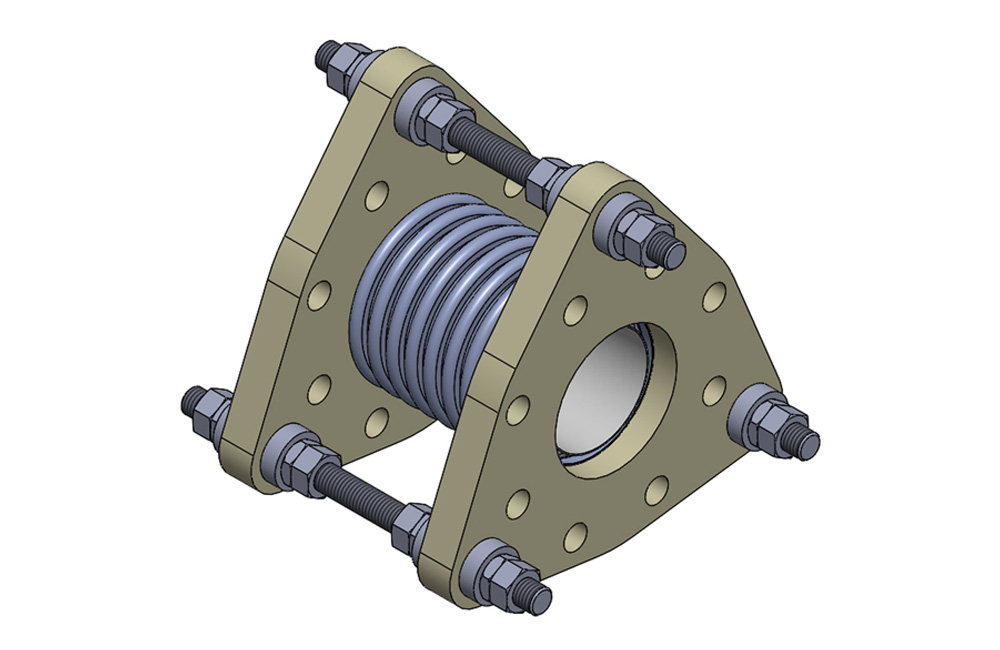

    • TIED PUMP CONNECTOR (TPC)
    • TIED PUMP CONNECTOR (TPC)
    • TIED PUMP CONNECTOR (TPC)
    Model No. TPC-10K TPC-20K
    Max. Pressure(Kgf/㎠) Max.10 Max.20
    Max. Temperature(℃) Max.220
    Connection Flanged
    Material Bellows(STS304), Flange(Carbon steel)
    Using Fluid Steam, Air, Gases, Water & Oils
    Axial Movement(mm) Axial : Max.18(-15, +3), Lateral : 3
    Code. MFG.STD MFG.STD
    10K spec.
    N.D L L' T W H Movement Weight
    (Kg)
    Axial Lateral
    ext. comp.
    25A 90 75 16 197 178 3 15 3 6.4
    32A 90 75 16 206 186 3 15 3 6.8
    40A 90 75 16 210 189 3 15 3 7.2
    50A 125 110 16 249 225 3 15 3 9.5
    65A 125 110 16 266 240 3 15 3 10.5
    80A 125 110 16 275 247 3 15 3 11.3
    100A 125 110 16 296 271 3 15 3 12.7
    125A 130 115 19 331 311 3 15 3 17.0
    150A 150 135 19 357 341 3 15 3 19.3
    200A 150 135 19 400 391 3 15 3 23.6
    20K spec.
    N.D L L' T W H Movement Weight
    (Kg)
    Axial Lateral
    ext. comp.
    25A 90 75 16 197 178 3 15 3 6.4
    32A 95 80 19 206 185 3 15 3 7.6
    40A 95 80 19 206 185 3 15 3 8.2
    50A 130 115 19 248 224 3 15 3 10.5
    65A 130 115 19 265 239 3 15 3 12.2
    80A 135 120 22 287 260 3 15 3 13.9
    100A 145 130 25 308 285 3 15 3 20.5
    125A 145 130 25 347 330 3 15 3 25.8
    150A 170 155 28 385 370 3 15 3 32.9
    200A 170 155 30 416 410 3 15 3 40.0
