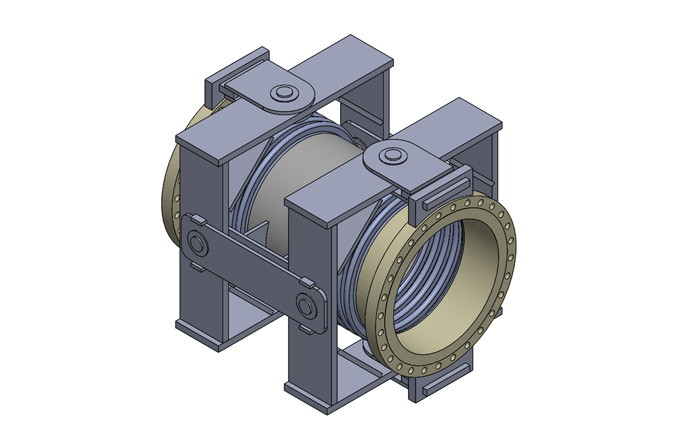

    • GIMBAL EXPANSION JOINT

    • The gimbal expansion joint is basically the same as the hinge type, except that instead of being limited to deflection in only one plane, it can accept bending or angulation in any plane. It contains two sets of hinge pins or pivots, the axis of each set perpendicular to the other. Each set of pins is connected to each other with a central gimbals ring, in much the same way that a universal joint on an automobile works. This unit provides the same type of restraint and resistance to axial forces, such as the pressure thrust, and to shear forces as the hinge type.

    • Application Steam, cold water, hot water, and other pipelines.
      Pressure F/V up to 70bar (depending on the diameter)
      Tag
      • Data 카탈로그 다운로드

제품설명

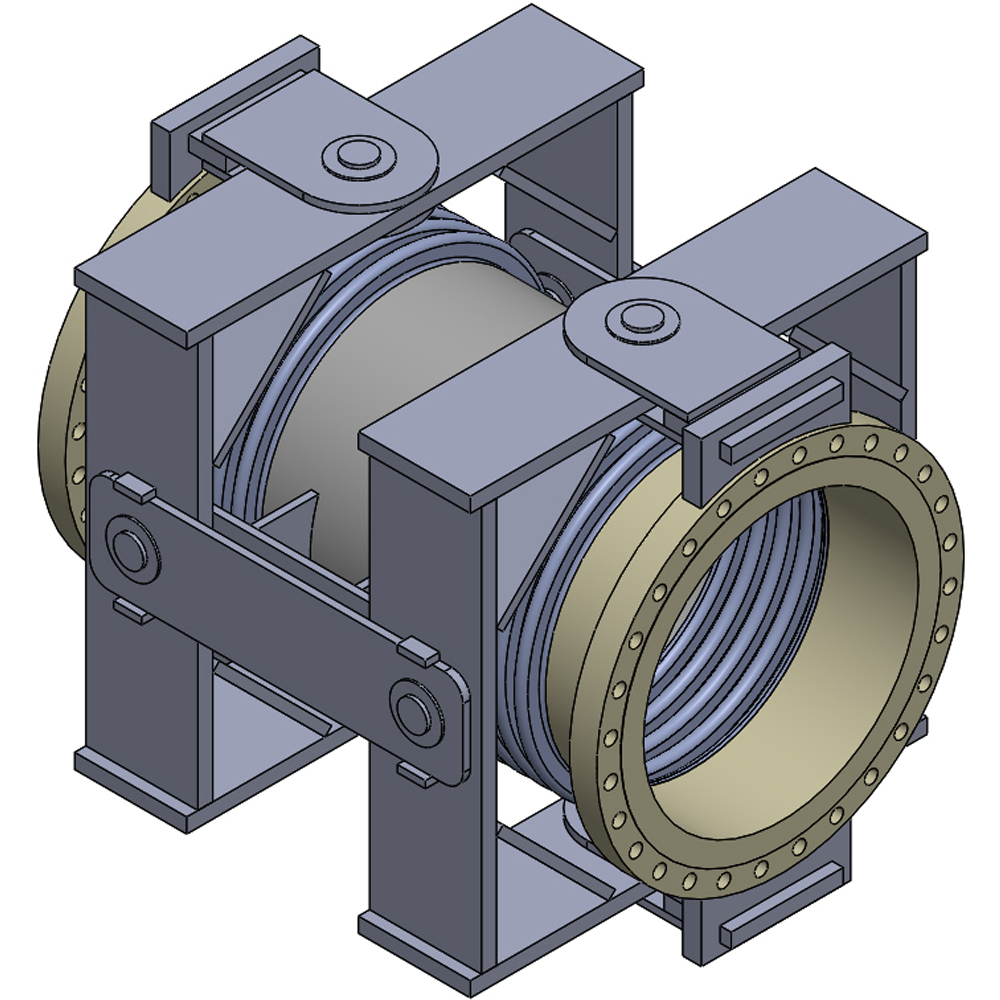

    • gimbal

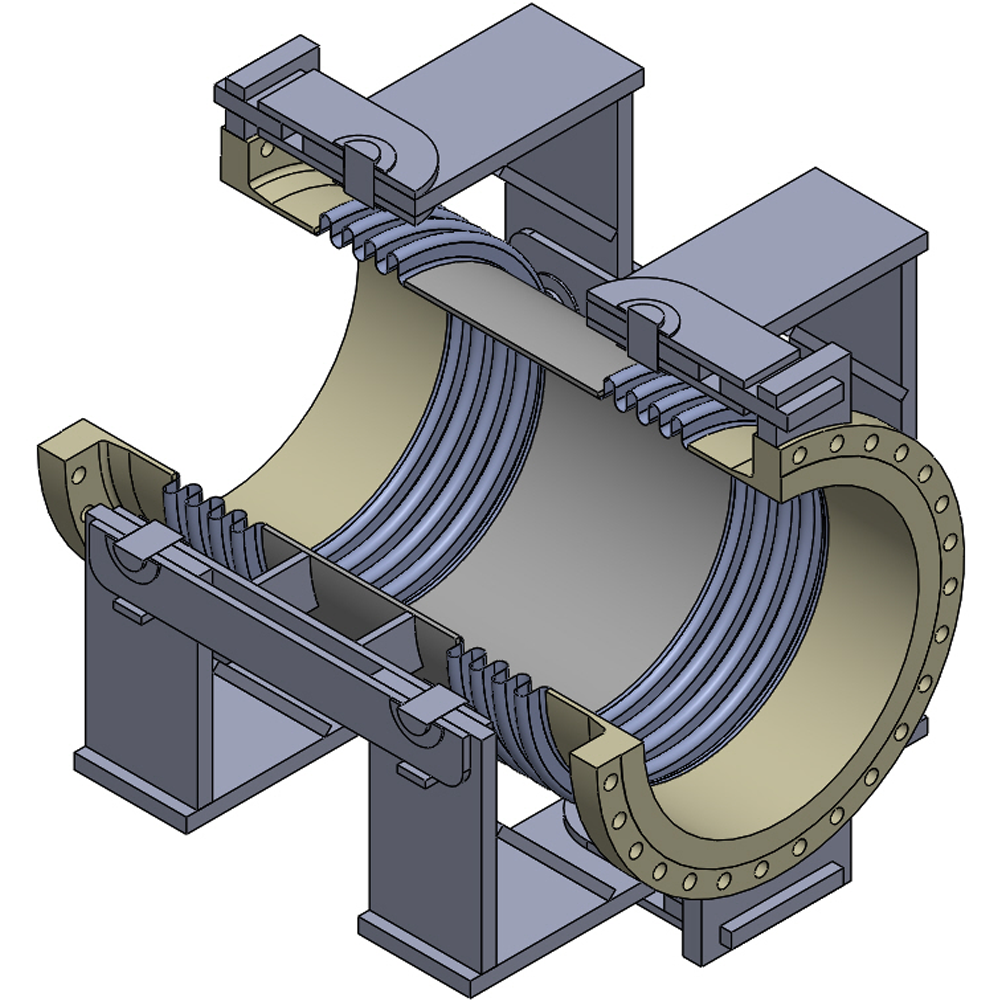

    • gimbal

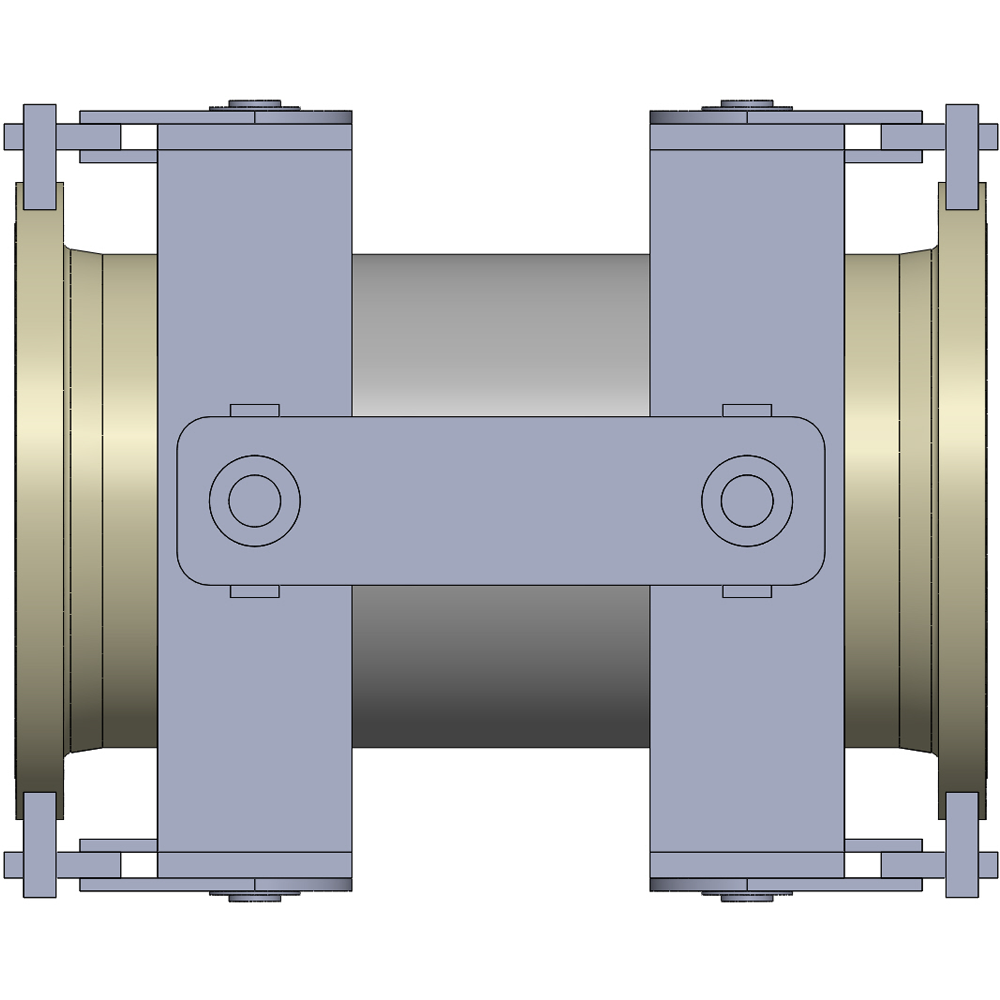

    • gimbal
    Diameter
    No.    		 Outside
    Dia.(mm)    		 No. of
    Convol.    		 Single type Double Type Maximum Lateral Deflection
    Angular
    Rotation    		 Length(mm)
    Weight(kg)    		   Length
    1000mm    		 Length
    1500mm    		 Length
    2000mm    		 Length
    2500mm    		 Length
    3000mm    		 Length
    4000mm
    50A 150 4 8.6 264 Deflection(mm) 77 130 182 234 287 393
    23 Weight(kg) 43 46 49 52 55 61
    65A 180 4 9.0 272 Deflection(mm) 64 108 153 197 242 331
    28 Weight(kg) 53 58 62 67 71 80
    80A 220 4 8.0 272 Deflection(mm) 58 98 139 180 221 302
    33 Weight(kg) 63 69 75 81 87 99
    100A 240 4 7.0 328 Deflection(mm) 48 84 120 156 193 265
    48 Weight(kg) 88 96 104 111 119 135
    125A 285 4 5.7 328 Deflection(mm) 40 70 100 130 161 221
    56 Weight(kg) 104 113 122 131 140 158
    150A 325 4 9.6 432 Deflection(mm) 57 108 159 210 261 363
    82 Weight(kg) 150 164 189 194 209 238
    200A 375 4 7.2 462 Deflection(mm) 42 82 122 162 202 283
    107 Weight(kg) 190 212 215 257 280 325
    250A 430 5 7.3 540 Deflection(mm) 37 78 120 161 202 284
    140 Weight(kg) 234 266 297 329 360 423
    300A 480 5 6.1 590 Deflection(mm) 28 62 97 132 167 235
    193 Weight(kg) 311 352 394 435 477 605
    350A 520 6 7.7 618 Deflection(mm) 32 75 118 161 205 290
    237 Weight(kg) 372 422 472 522 572 672
    400A 590 6 6.7 618 Deflection(mm) 28 67 105 142 180 256
    302 Weight(kg) 471 541 606 671 736 866
    450A 660 6 5.9 618 Deflection(mm) 25 59 93 127 161 229
    341 Weight(kg) 538 613 688 763 838 988
    500A 730 6 5.2 618 Deflection(mm) 22 53 83 113 144 205
    406 Weight(kg) 640 705 770 835 900 1030
